Uniden BCD536HP — Vol 2: Operations
P25 Phase II, GPS, Wi-Fi remote via ProScan
2.1 Operating modes
The BCD536HP decodes everything the BCDx36HP firmware tree supports. This is the layer cake of modes — the table below distinguishes what’s universal vs. what’s a paid-option firmware extension. Cross-link Vol 13 §3 ↗ for the broader feature-comparison framing across the Uniden lineup (where the BCD536HP sits as “the generation before SDS200”).
Table 1 — Operating modes
| Mode | Supported? | Notes |
|---|---|---|
| Analog conventional FM (NFM / WFM) | Yes — standard | The bread and butter for ham, marine, aero, public-safety legacy. |
| Analog conventional AM | Yes — standard | Airband 108-137 MHz, some legacy services. |
| Motorola Type I / II / IIi (analog trunked) | Yes — standard | Legacy LMR backbone for many municipalities. |
| EDACS | Yes — standard | Legacy GE/Ericsson trunked. |
| LTR | Yes — standard | Logic Trunked Radio (small-business / utility). |
| P25 Phase I (FDMA) | Yes — standard | C4FM modulation, conventional and trunked. |
| P25 Phase II (TDMA) | Yes — standard | H-DQPSK modulation on the trunked control channel, two voice timeslots per RF channel. The dominant modern public-safety mode in the US. |
| P25 LSM (Linear Simulcast Modulation) | No | LSM decoding was added to Uniden firmware on the SDS-series only. This is one of the meaningful capability gaps vs. the SDS200. Most simulcast P25 systems work acceptably with the BCD536HP’s standard P25 decoder, but in some geographies with overlapping simulcast transmitters the SDS200’s LSM gives a cleaner decode. |
| DMR Tier II (TDMA) | Yes — paid firmware option (~$60 one-time unlock) | Commercial and amateur DMR (BrandMeister/TGIF over-the-air RF, not the network protocol — for the network see Vol 2). Unlocked per-unit via Sentinel. |
| NXDN (4800/9600 baud) | Yes — paid firmware option (~$60 one-time unlock) | Newer narrow-band digital used by some utility/business systems. |
| Motorola Connect Plus | Yes — standard | Motorola’s TDMA trunking; common in commercial Motorola installations. |
| X2-TDMA | Yes — standard | Earlier Motorola TDMA flavor. |
| Hytera DMR (XPT / Tier III) | Partial / firmware-dependent | Some Hytera proprietary extensions don’t decode cleanly. |
| ProVoice (EDACS ProVoice) | No | ProVoice unlock is SDS-series only (~$70 on SDS100/SDS200). If you’re in EDACS-ProVoice coverage, the BCD536HP is not the right choice — buy the SDS-series instead. |
| TrueIQ baseband | No | Conventional heterodyne architecture, predates TrueIQ. Where TrueIQ matters: dense-RF urban environments with overlapping simulcast and adjacent-channel interference; for the typical suburban/rural monitoring case the BCD536HP’s selectivity is fine. |
| Encrypted P25 / DMR / Motorola | No (legally — decryption is illegal even with capability) | The BCD536HP cannot decrypt any encrypted system. This is correct: passive decryption is prohibited under federal law (18 USC §2511). Encrypted talkgroups show up as “ENC” on the display and produce no audio. |
The honest summary: the BCD536HP decodes everything the average operator will encounter outside of EDACS-ProVoice areas. The capability gaps vs. SDS200 ↗ (LSM, TrueIQ, ProVoice) matter in a small minority of geographies and use cases.
2.2 Field use
Antenna pairing for the BCD536HP is mostly about posture. The two common deployments — base/desktop, and vehicle/mobile — call for different antennas.

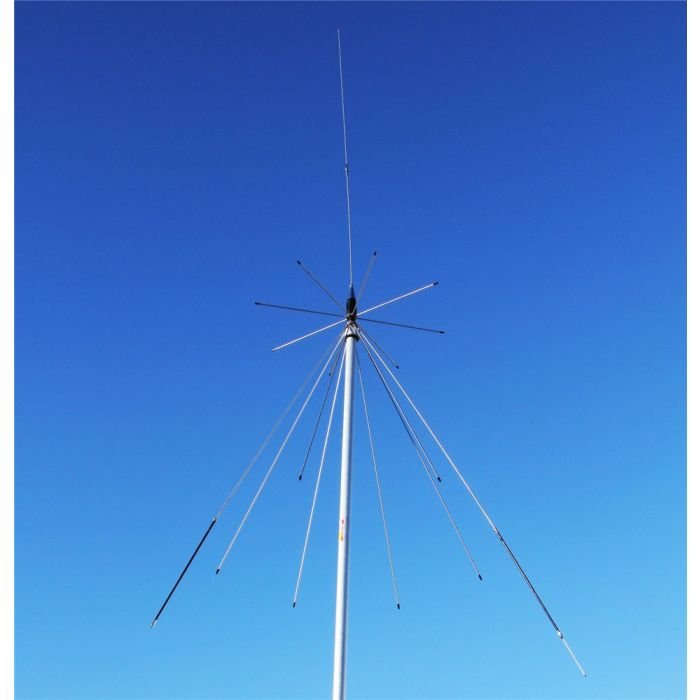

Base/desktop: outdoor discone is the right answer for general wideband scanning across the BCD536HP’s coverage (25-512 MHz, 758-960 MHz, 1240-1300 MHz with gaps). Diamond D-130J ($90, 25-1300 MHz, 18 elements, +0 dBi reference), Comet DS-150S ($110), or a budget Tram 1410 ($75) all fit the role. Roof-mount or attic-mount for line-of-sight to local public-safety repeaters; expect ~50-100 ft of LMR-400 feedline run with N or BNC terminations — see Antennas Vol 12 (Discone) for the geometry-by-frequency tradeoffs and Antennas Vol 5 (Transmission Lines) for the feedline loss calculations (a 100 ft LMR-400 run at 800 MHz costs ~3 dB — meaningful when chasing weak fringe-area public-safety signals).
If specific bands matter more than wideband coverage — e.g. a serious public-safety scan in the 700/800 MHz P25 band with no interest in HF/VHF utility traffic — a log-periodic (Antennas Vol 9) with narrower forward-arc gain (+5 to +7 dBi over the discone’s reference 0 dBi) buys 6-10 dB of receive margin on the bands of interest. Tradeoff: pattern directionality means signals off the back/sides are attenuated.
Vehicle: NMO mag-mount dual-band whip is the standard answer. Larsen NMO-150/450 ($60, 2 m + 70 cm), Comet CA-2x4SR ($55), or for wider scanner-band coverage the Diamond NR770HBNMO ($65) which is rated for the wider Uniden scan range. Mag-mount avoids drilling the roof; NMO permanent mount through the roof or trunk lip is mechanically superior but vehicle-specific.
For both deployments, cross-link Antennas Vol 29 (Use-case Matrix) which has the explicit per-radio antenna recommendations including the BCD536HP entry with the 4-tier upgrade ladder.
GPS-based location-aware scanning: with the optional Uniden BC-GPSK external GPS module plugged into the rear-panel GPS jack, the BCD536HP can auto-enable and auto-disable sites and systems based on physical location. This is the right choice for vehicle use — driving from Cleveland to Pittsburgh, the scanner auto-handoffs from CECOMS (Cleveland Emergency Communications) sites to Allegheny County sites without manual reconfiguration. The setup: enable GPS in the scanner menu, assign each system a lat/lon center + range (Sentinel pulls these from RadioReference automatically), and the scanner does the rest.
Recording: internal recording to the SD card is straightforward — enable per-channel or per-system in Sentinel, set the audio quality (8 bit / 16 bit), and any active hit on those channels writes a timestamped .wav. The audio line-out on the rear panel is for external/parallel recording if you want a cleaner pipeline into a PC running Audacity or for live streaming via VLC.
Power supply hygiene: the bundled wall adapter is fine for desktop. For vehicle, fuse the 12 V feed at 1 A. Some vehicle 12 V rails are noisy on the audio output — a ferrite choke on the power feed plus a separate ground return (not chassis-grounded at the scanner) cures most of it.
