Uniden BCD536HP — Vol 4: Reference

P25 Phase II, GPS, Wi-Fi remote via ProScan

4.1 Tips and tricks

1. Wi-Fi remote display via ProScan’s web server is the killer feature. ProScan (the third-party paid CPS, ~$25 mid-2026) includes a built-in web server that mirrors the BCD536HP’s display and audio to any browser on the local network. Setup: install ProScan on a Windows PC, connect the BCD536HP via USB, enable “Remote Control Server” in ProScan’s Tools menu, and the scanner’s display becomes accessible at http://<pc-ip>:8080. From a phone, tablet, or laptop anywhere on the LAN, you can see what’s hitting, hear the audio (via streaming), and execute Hold/Avoid/Search commands remotely. Manual: ../manuals/uniden-bcd536hp/Uniden BCD536HP Wi-fi Stream and Remote Access Via Proscan Web Server.pdf. This is the workflow for “scanner in the basement near the antenna feedline; monitoring from the kitchen or the back yard.”

2. Discovery mode finds active frequencies you didn’t know existed. Discovery is Sentinel’s automated band-sweep mode — point it at a frequency range and a session length (typically a few hours), and it logs every hit with timestamps, signal strength, decoded talkgroup if applicable, and a snippet of audio if recording is enabled. Run this overnight on the local 460-470 MHz business-band range and you’ll discover taxi dispatch, school-bus radio, hospital paging, construction-site traffic — surfaces that won’t show up in any RadioReference database because they’re licensed under business-radio §90.35 rules and not catalogued publicly. The discovered hits can then be promoted to Favorites Lists with a few clicks.

3. Favorites Lists are shareable. Each Favorites List is a single .fls file in the SD card’s FavoritesLists/ directory. Email it, post it on a forum, drop it in a shared folder — recipients import directly into their own Sentinel and they have your exact scan configuration. The local hamradio club’s scanner-net frequency list, the regional public-safety scan group, the airshow-day scan list: all share-and-import workflows work this way.

4. Firmware updates via Sentinel are straightforward — but back up first. Sentinel checks Uniden’s servers on launch and offers any new firmware. The process is: backup → enter Mass Storage Mode → Sentinel pushes new firmware via USB → reboot. The whole sequence takes ~5 minutes. The catch: never disconnect USB mid-update; if Power-on with corrupt firmware, the scanner won’t boot and recovery requires Uniden warranty service. Backup, then update, then verify.

5. The Avoid (X) key is your friend for temporary muting. A chatty talkgroup that’s monopolizing your scan can be temporarily skipped with a single press of the X (Avoid) button while it’s holding. The avoid is volatile (cleared on power cycle) for “I don’t want to hear them right now, but I want them back tomorrow.” For permanent removal, edit the Favorites List in Sentinel.

6. The audio line-out feeds a PC for SDRTrunk or DSD+ external decode. The rear-panel line-out can pipe pre-volume audio into a PC sound card for external decoding pipelines — useful when you want to capture P25 audio at higher fidelity than the scanner records, or when you want to feed a DSD+ instance to decode systems the BCD536HP itself recognizes but you want a parallel reference recording. The line-out is hot at all times (does not mute when external speaker is connected). Combined with the discriminator output (if your unit has one populated), this gives both ends of the audio chain (raw demodulated and decoded-output) for analysis.

7. The “Close Call” RF capture feature. Close Call (CC) is Uniden’s branded near-field RF-detection mode — the scanner samples its current band-segment for any strong nearby transmitter and tunes to it automatically, regardless of programmed channels. Useful for “what’s that radio that just keyed up next to me at the security desk?” In a vehicle parked at an event venue, leaving CC on in the relevant band segment (e.g. 460-470 MHz business UHF) catches every handheld within ~100 m. Three modes: CC-Only (scanner does nothing but watch for nearby strong signals), CC Priority (interleaves CC checks into normal scan), CC Off. Tradeoff: CC Priority interrupts your scan briefly every few seconds and can miss short transmissions on the regular scan list. Use CC-Only when you’re sitting and listening, CC Priority when driving, CC Off for serious monitoring of a specific system.

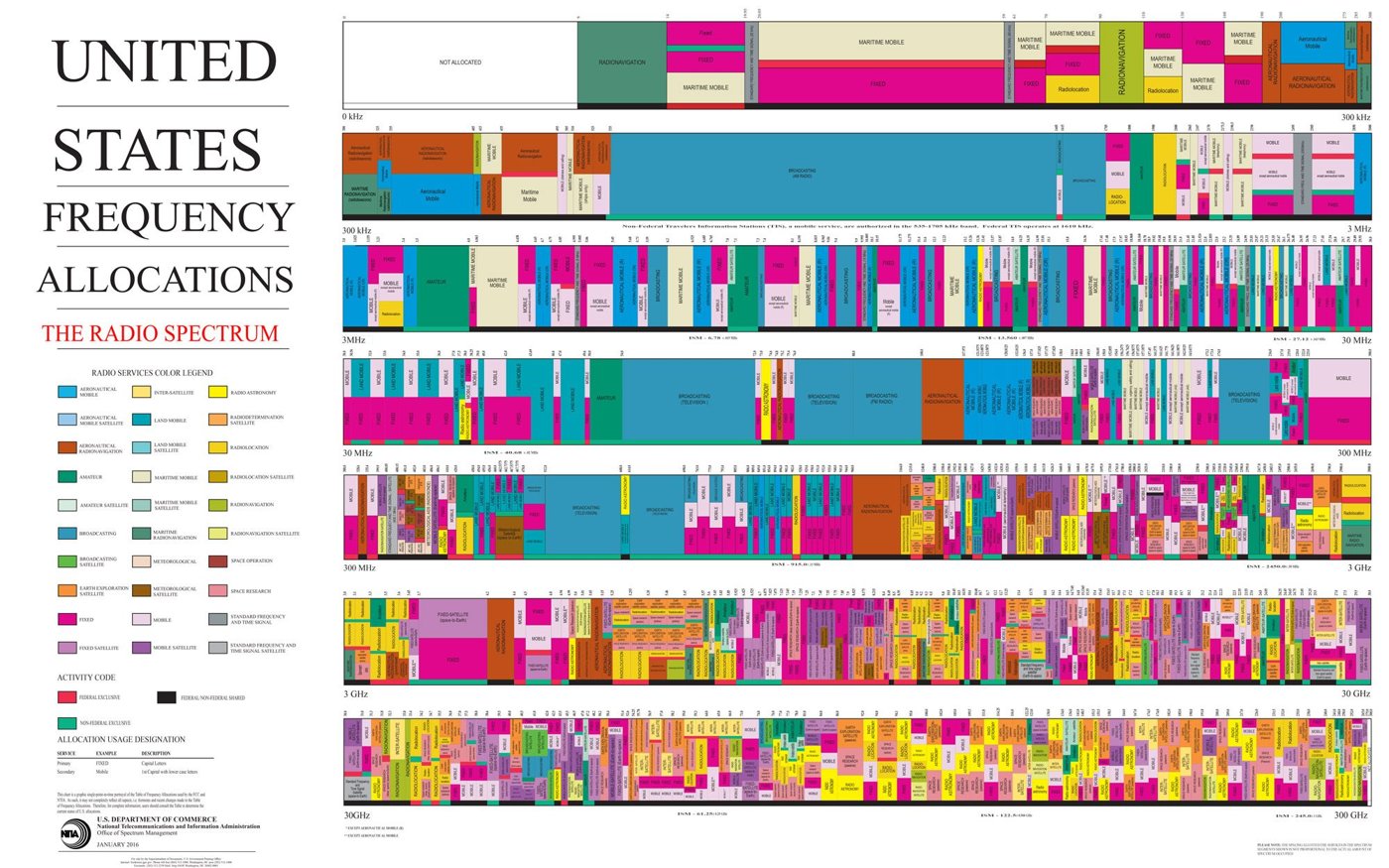

8. Service searches are the right starting point in unfamiliar areas. The BCD536HP ships with pre-populated service-search ranges: Police, Fire/EMS, Aircraft (civil + military), Marine, Ham (2m + 70cm), CB, FRS/GMRS/MURS, Racing, Railroad. In an unfamiliar city or at a new venue, before you do any custom programming, run the relevant service search for an hour and let the scanner show you what’s actually active. This pairs well with Discovery mode (tip #2): service search finds the obvious well-known traffic, Discovery surfaces the obscure business-band stuff that isn’t catalogued.

4.2 Resources

Manuals (local copies): ../manuals/uniden-bcd536hp/

  • BCD436-536HPOM_EN_10182013.pdf — primary operating manual (combined for BCD436HP and BCD536HP, since the firmware tree is shared).
  • RearPanel.jpg — labeled rear-panel reference photo (jack-by-jack identification).
  • Uniden BCD536HP Wi-fi Stream and Remote Access Via Proscan Web Server.pdf — the ProScan Wi-Fi remote-display setup walkthrough (the killer feature from §7 #1).
  • Sample .hpd codeplug files — known-good starting configurations for common regions; useful as templates.
  • f_list.cfg — a frequency-list configuration sample.

Sentinel (Uniden, free): primary CPS for the BCDx36HP family.

ProScan (third-party paid CPS, ~$25 mid-2026): the Wi-Fi remote-display web-server tool from §7 #1.

FreeScan (third-party free CPS, older alternative):

  • https://www.freescan.eu — predates Sentinel; mostly superseded but useful as a backup CPS or for unusual editing workflows.
